MicroXRF analysis of the solder

XROS MF30.png

XROS MF30 – laboratory x-ray microscope-microprobe for studies of the objects by the methods of the optical microscopy, radiography, local element XRF microanalysis with the possibility of the element mapping.

Using a microscope, a sample of up to 400 mm in size along the Y-axis and of unlimited size along the X-axis (max. scan area 150×150 mm; in the case of a larger area, the scanned areas can be stitched) and up to 105 mm high can be performed.

An overview video camera and two optical microscopes with magnification up to 200 times are using for accurate determination of the scanning area.

The central optical microscope with automated sharpness adjustment is combined with the axis of the microprobe (axis of the x-ray beam).

Local X-ray fluorescence microanalysis with the possibility of elemental mapping and X-ray studies can be carried out both separately and simultaneously.

Sample positioning accuracy is 10 microns.

The minimum diameter of the x-ray probe is 30 µm.

The range of simultaneously measured elements from 11Na to 92U.

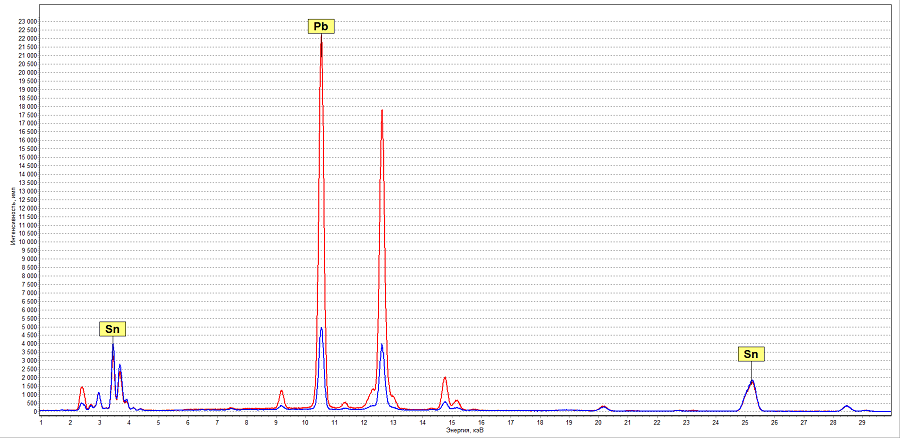

Fig. 1. Solder spectra: red - «POS-61» - 40% Pb, blue - «POS-90» - 10% Pb (U=40kV)

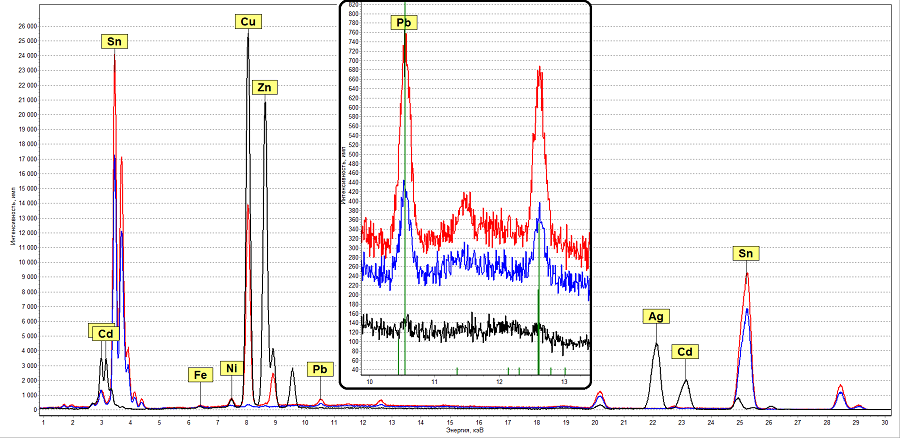

Fig. 2. Solder spectra: red - «S #1» - 0,26% Pb, blue - «S #2» - 0,15% Pb, black – «PSR-40» - 0,05% Pb (U=40kV

Experimental details

Scanning interval

800 µm


800 µm/s

Measurement time

100 ms


40 kV


2 000 µA

X-ray tube

Mo anode




The analysis demonstrated a possibility to analyze solders to measure Pb, Sn, Ag, Sn, Cd composition. To make quantitative analysis it is necessary to make CRMs.
